General information

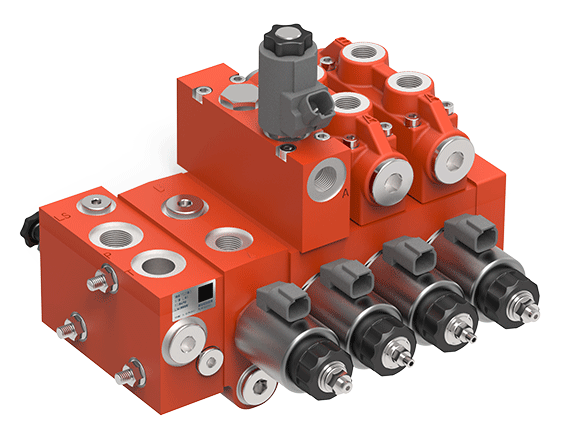

The L.8S valve series was developed for mobile applications and features a heavy-duty design with small external dimensions. With the modular system, the individual sections can be grouped according to requirements, which allows a great deal of flexibility and a wide range of applications.

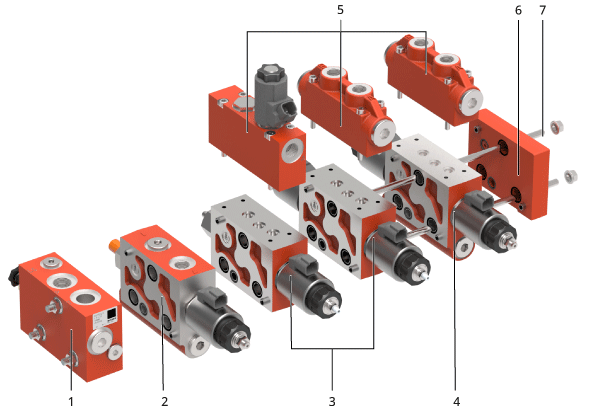

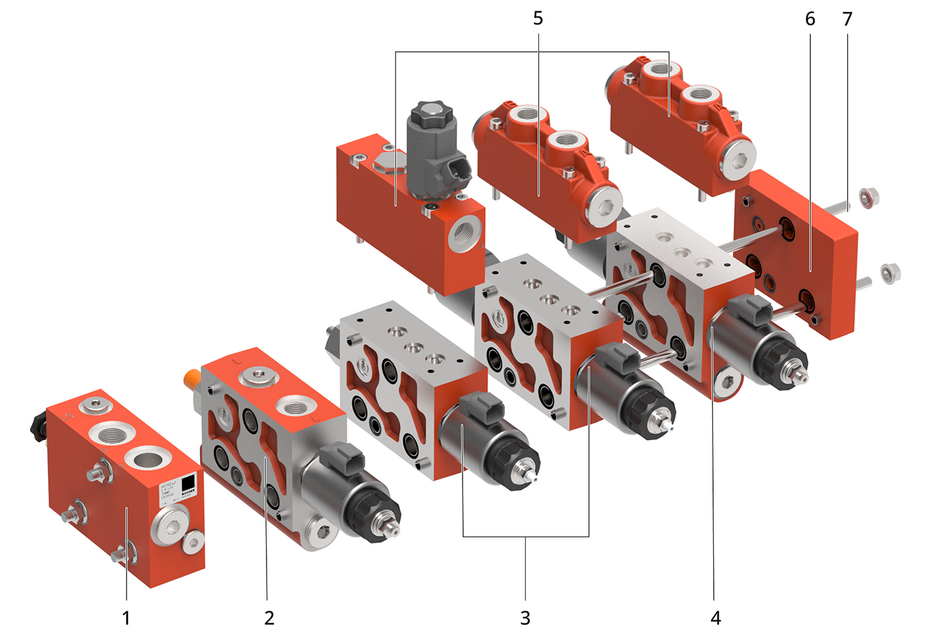

Example: block configuration
Item Designation
1 Inlet section with 3-way pressure compensator
2 Directional valve with threaded port and integrated individual pressure compensator/electromagnet, direct acting
3 Directional valves with flange face for auxiliary valve/electromagnet, direct-acting
4 Directional valves with flange face for auxiliary valve, and integral individual pressure compensator/solenoid, direct-acting
5 Auxiliary valves that bolt on to the top flange face O
6 End sections (without function)
7 Tie rods/Seal Lock sealing nuts
