Check Valves REP…

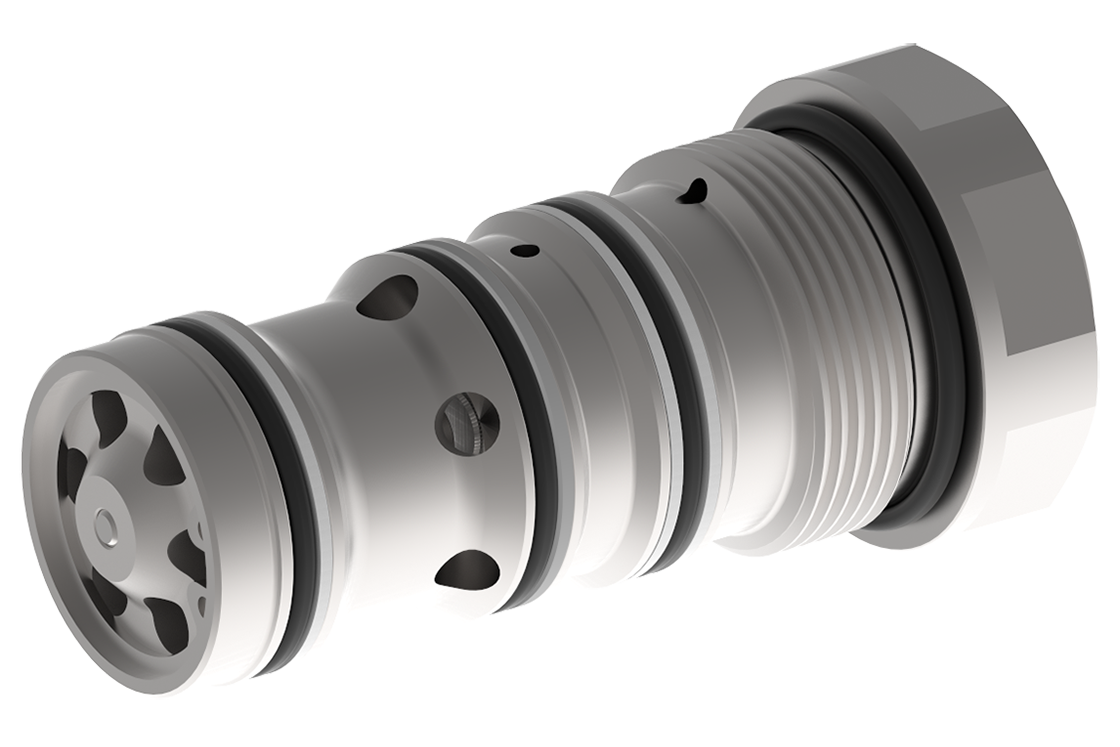

Series REP… check valves prevent any flow in one direction but the valves can be made to open by applying pressure to port X. In the opposite direction, flow is unrestricted (opening pressure approx. 2 bar).

Check Valves REP…
Symbol Type Nominal size
mm		 Opening pressure
bar		 Flow rate, max.
l/min		 Operating pressure up to
bar		 Data sheet Data sheet
REPB-10… 10 > 2 120 350 REP-10-RC_400-P-456101-en REP-10-RC_400-P-456101-us
REPYB-10-… 10 > 2 120 350 REP-10-RCY_400-P-456501-en REP-10-RCY_400-P-456501-us
REPNB-16-… 16 > 2 300 350 REP-16-EC_400-P-457101-en REP-16-EC_400-P-457101-us
REPYB-16-… 16 > 2 300 350 REP-16-ECY_400-P-457102-en REP-16-ECY_400-P-457102-us
  • Agricultural machinery
  • Construction machines
  • General mechanical engineering
