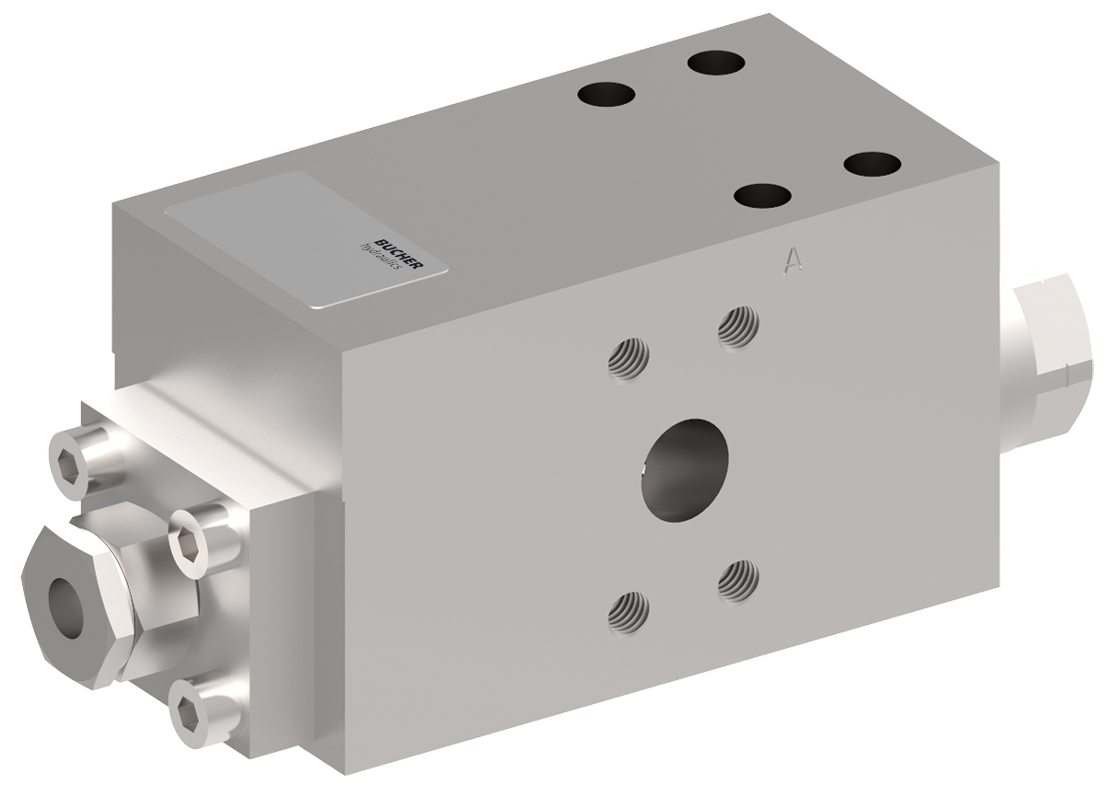

Load Control Valves CINDY

Whenever loads are to be precisely moved, placed and held, leak-free load-control valves from the CINDY series are the right solution. Load-control valves in this series prevent hydraulic actuators from running ahead of the available oil supply. In one valve, they combine the functions of load-holding, safety and pipe rupture protection. Leak-free load-control valves in this series are ideally suited for use in high-pressure applications up to 420 bar (6000 psi). With a variety of optional components, the series can be extended and adapted to the requirements of the system.

Load Control Valves CINDY
  • Two-stage load-control valve and bypass check valve are functionally combined in one coaxial valve assembly
  • Leak-free load holding
  • Pilot ratio 113:1
  • Guaranteed closing force for the load-control assembly → reliable shut-off even with a broken spring
  • Various pilot-pressure ranges can be chosen
  • Satisfies exacting demands on corrosion protection thanks to zinc-nickel coating
  • Various types of pilot control are available
  • Pressure relief is independent of return-line pressure
  • Low-noise operation thanks to specially shaped control grooves
Type Design Size
Max. flow rate
l/min
Operating pressure up to
bar
CINDY-P Manifold design 12, 16, 20, 25 500 420
CINDY-S SAE-flange design SAE 1/2", SAE 3/4", SAE 1", SAE 1 1/4", SAE 1 1/2" 1000 420
CINDY-C Cartridge design 20, 25, 40 1300 420
  Type File extension Size
CINDY-12-P_300-P-9050097-en Catalog / Data sheet PDF 322.9 KB
CINDY-16-P_300-P-9050100-en Catalog / Data sheet PDF 298.6 KB
CINDY-20-P_300-P-9050104-en Catalog / Data sheet PDF 313.8 KB
CINDY-25-P_300-P-9050105-en Catalog / Data sheet PDF 307.0 KB
CINDY-12-S_300-P-9050106-en Catalog / Data sheet PDF 347.3 KB
CINDY-16-S_300-P-9050107-en Catalog / Data sheet PDF 370.6 KB
CINDY-20-S_300-P-9050108-en Catalog / Data sheet PDF 371.6 KB
CINDY-25-S_300-P-9050109-en Catalog / Data sheet PDF 380.7 KB
CINDY-32-S_300-P-9050116-en Catalog / Data sheet PDF 338.6 KB
CINDY-20-C_300-P-9050110-en Catalog / Data sheet PDF 348.5 KB
CINDY-25-C_300-P-9050111-en Catalog / Data sheet PDF 345.1 KB
CINDY-40-C_300-P-9050099-en Catalog / Data sheet PDF 436.3 KB

Symbol CINDY S

Symbol CINDY P / CINDY C

  • Mobile, port and ship cranes
  • Aerial work platforms
  • Fire-fighting turntable ladders
  • Drilling rigs
  • Underground and tunnel boring machines
  • Hydraulic presses
